Hyster H 20 XD 9
Pris exklusive moms
Pris på begäran
Skriv ut
INFO
Produktgrupp
Dieselmotviktstruckar
Märke / modell
Hyster H 20 XD 9
Tillverkningsår
2024
Drifttimmar
5 h
Övrig utrustning
Ej använd
Uppställningsplats
Barneveld, Gelderland
Land
Nederländerna
Allmänt betyg
1
2
3
4
5
Mascus ID
EFFC882F
DETALJER
Antal däck
6
Senast besiktigad
2024-09-02
Max. lyftkapacitet
20 000 kg
Lyfthöjd
3 750 mm
Frilyft
3 780 mm
Stativtyp
Duplex
Däckmärke
Trelleborg
Däcktyp
Luftgummi
Gaffellängd
2 440 mm
Hytt
Hytt
Växellåda
automaat
Motor
Mercedes
Motoreffekt
180 kW (245 hk)
Motortillverkare
Mercedes
Framdäckens kondition
100
Bakdäckens kondition
100
Storlek på framdäck
14.00-24
Storlek på bakdäck
14.00-24
Tillverkningsland
Nederländerna
Styrhjulskonfiguration
2
Drivhjulskonfiguration
2
Certifikat
CE
Entreprenad tillbehör
Takfönster
Värmeaggregat
Dokument/ Bilagor
Annan information

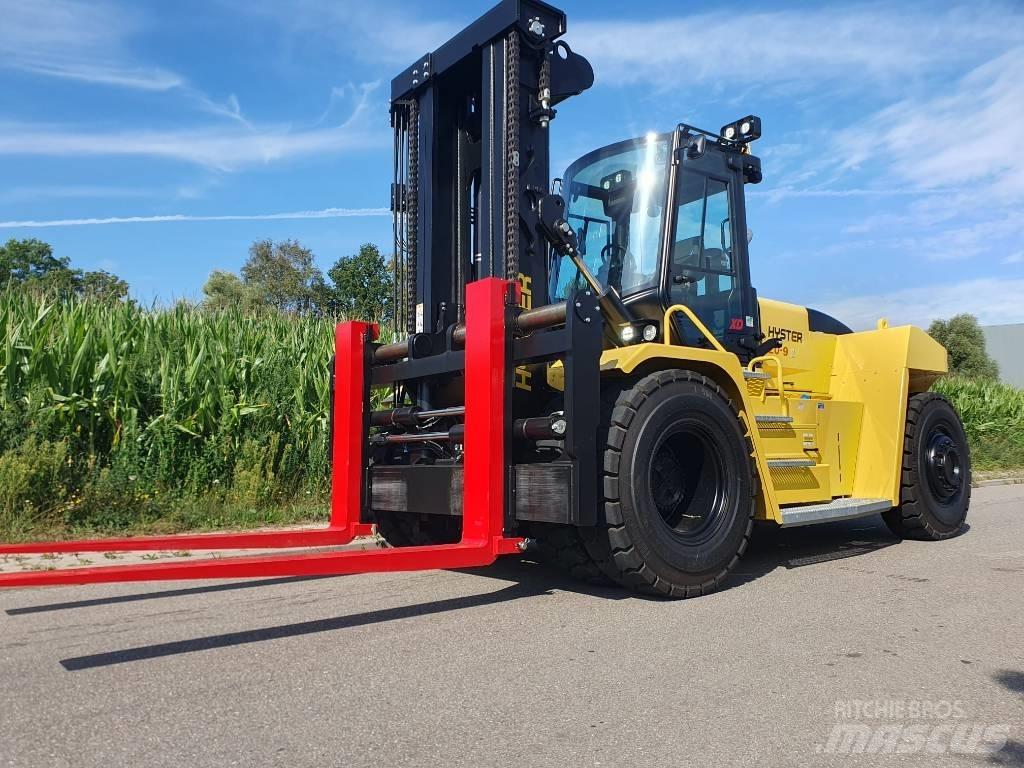

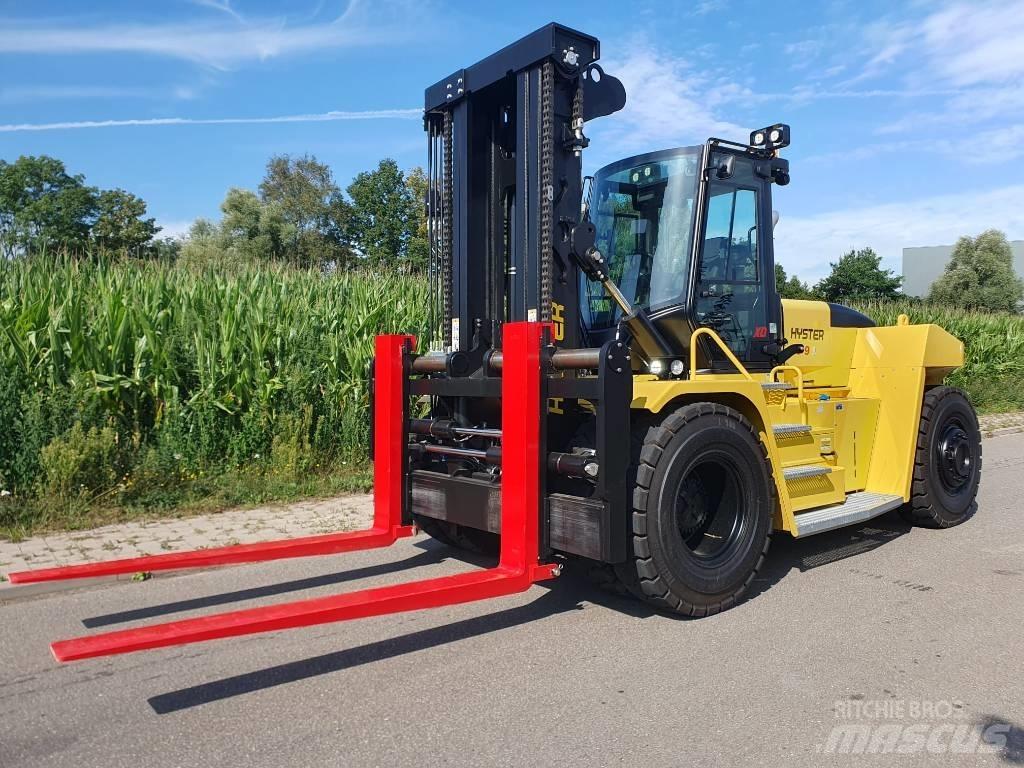

Hyster® H20XD9 High Capacity Forklift Truck: 20,000 kg Nominal Capacity @ 900 mm Load Center /
3,750 mm Wheelbase
Truck Start -- Key switch with start button -- Without Seatbelt Interlock

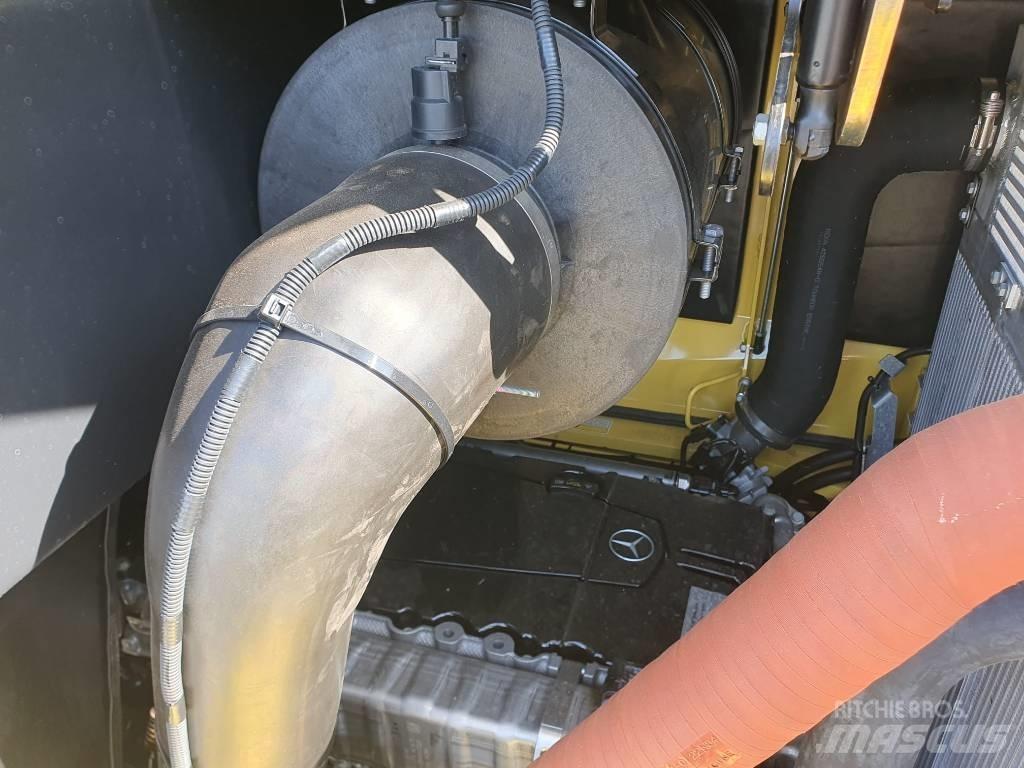

Mercedes 6R1000 7.7L Stage V Diesel Engine: Rated Power 180 kW @ 2200 rpm
Oil-immersed Wet Disc Brakes
ZF WG211 5-Speed Transmission with 5 Speeds Forward and 3 Speeds Reverse
CE Certification
Coolant Level Warning on Display
Engine Oil level on Display and Dipstick
Fuel Cap - Non-lockable
Delayed Engine Shutdown for Turbo Cooldown
2 Stage Non Free Lift Mast - 3750mm Maximum Lift Height - 3780mm Overall Lowered Height
Mast Tilt - 10° Forward / 12° Back
2940mm Quick Disconnect Hook Type Dual Function Sideshift Carriage with Simultaneous and
Individual Fork Positioner
2440mm Long x 100mm Thick x 250mm Wide - Hook Type Forks with Standard Taper
Pressure Compensated Lowering
6 Function (4 Auxiliary) Hydraulic Valve
Hydraulics controlled by 4 Levers and 2 Rocker Switches - Not For Clamping Attachments
4 Auxiliary Function Hose Group - 3 Hoses and 1 Wire Cable Externally Mounted - Includes Selector
Valve
Pneumatic Bias Ply Drive Tyres / 14.00-24 24PR
Pneumatic Bias Ply Steer Tyres / 14.00-24 24PR
Enclosed Operator Cabin with Air Conditioning and Automatic Climate Control
Top Window with Armored Glass
2 External Wide Angle Mirrors mounted on Cab Handrail
Digital 7" Display
I-Type Single Blade Wiper on Front Window
Armrest on Left Side
Electronic Horn 105 db(A)
Interior Dome Light
Manual Tilt Operator Compartment for Service Access
Sun Roller Screens for Rear and Top Window
Forward-Neutral-Reverse Directional Control on Armrest
Steering Wheel with Spinner Knob
Park Brake -- Automatic
Air Ride Full Suspension Vinyl Seat
Seatbelt - 2-Point High-Visibility
High and Adjustable Seat Backrest
Hyster Tracker Wireless Monitoring - EMEA
2 LED Work Lights Mast Mounted Front / 2 LED Cab Mounted Rear / 2 LED Drive Lights Front Fenders
/ 2 LED Rearward Cluster with Stop, Tail and Reverse Lights / Directional Lights on Front Fender and
Rear Cluster
Audible Alarm - Reverse Direction Activated - Self-Adjusting 82-102 dB(A)
Amber Strobe Light - Ignition and Switch Activated
24 Months / 4000 Hours Manufacturer's Warranty
