Ozgul LW3 EU 1SS

Pris exklusive moms

Compnay LOGO
Images20

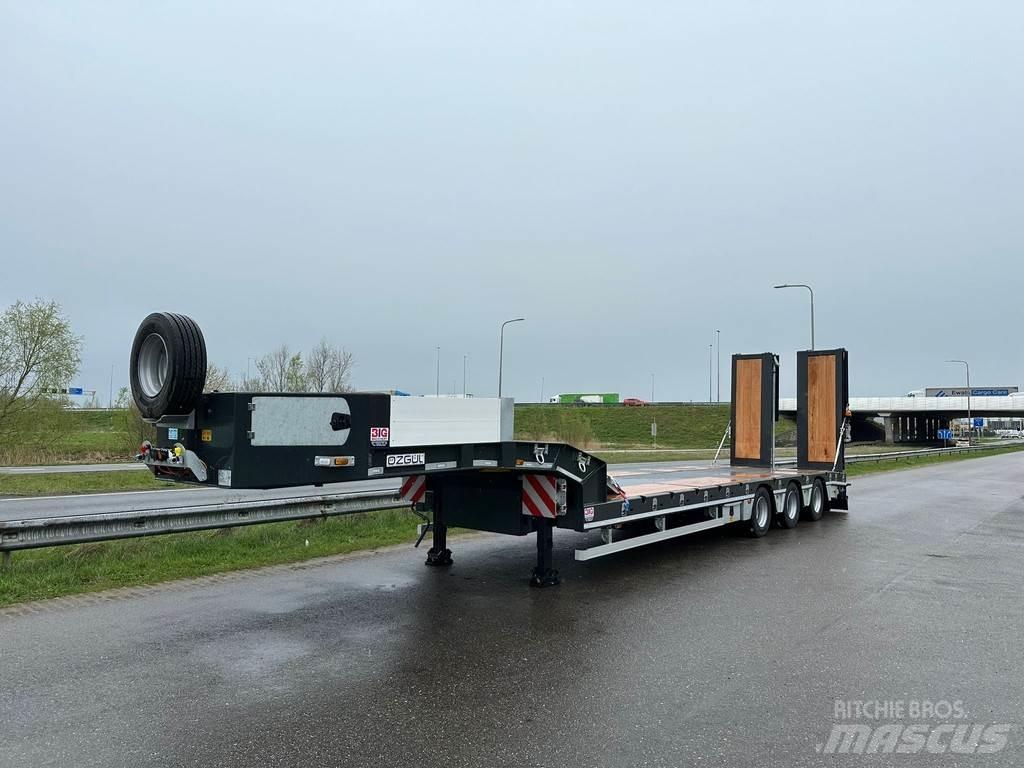

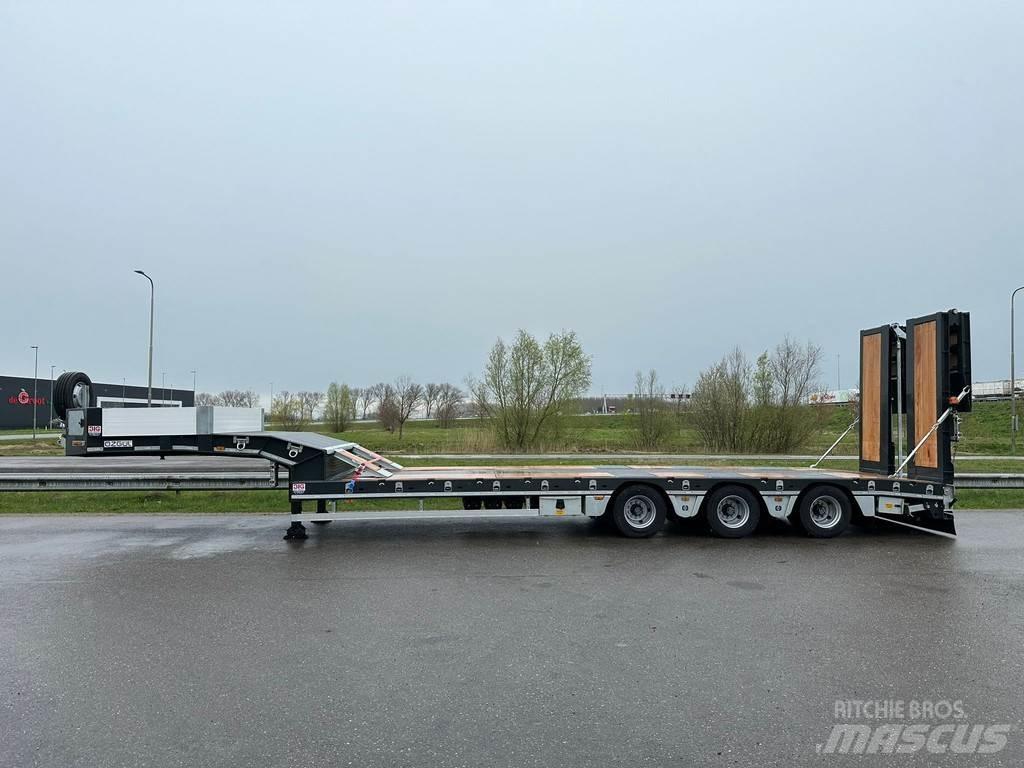

Ozgul LW3 EU 1SS Låg lastande semi trailer
Ozgul LW3 EU 1SS Låg lastande semi trailer
Ozgul LW3 EU 1SS Låg lastande semi trailer
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Låg lastande semi trailer
Märke / modell
Ozgul LW3 EU 1SS
Tillverkningsår
2024
Övrig utrustning
Ej använd
Uppställningsplats
BIG 1 BIG Machinery B.V. (Schiemerik 1)
Land
Nederländerna
Mascus ID
E4FA60D4

PRIS

Jämför i annan valuta

DETALJER

Registreringsår
2024
Lagerid
00032317
Tillverkare / Karosseri
OZGUL
Tillverkningsland
Turkiet
Tillbehör
EN: ABS, EBS, Lifting axle, Spare tyre NL: ABS, EBS, Liftas, Reserveband
Annan information
MASSES & DIMENSIONS Gross Vehicle Weight (kg) : 58.000 Loading Platform Length (mm) : 9.000 Weight of Axle Group (kg) : 36.000 Total Lenght (mm) : 13.550 Kingpin Capacity (kg) : 22.000 Total Width (mm) : 2.550 Curb Weight (kg) : 12.300 Loading Platform Height (mm) : 920 Pay Load (kg) : 45.700 Height of 5.th Wheel (mm) : 1.310 CONSTRUCTIONS Base Chassis Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis. Outer frame is UPE 240 profile. Welding (Chassis) : Automatic ARC submerged. Welding (Superstructure) : Automatic robot welding. Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand Drum brakes 3 x 12 Ton axles Axle Lifting : 1st axle automatic Suspension (Type) : Air Suspension. Steering Axles : 3rd Axle self steering. King pin (Type) : 1 position with 1x coupling-pen 2” (EU approved) Çayırova Brand. Tires : 12+1 Units, 245 / 70 R 17.5 Fulda or Pirelli or Goodyear Brand. Rims : 12+1 Units, 6.75 x 17.5 steel rims. Jantas or Ako Brand. Landing Gear : Mechanical operated by one side, two speed. Gos Brand. Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation. Brake Chamber 1 axles with 2 units emergency brake chambers. 2 axle with 4 unit service brake chambers. Electric System 24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand. • 2 x Rear Stop Lights. - 4 x Side LED Lights. • 2 x White LED Lights - 2 x Front LED Lights • 2 x Registration Plate Lights - 2 x rotating Lights Floor Above tyres and edges of platform are covered chequered sheet and hard wood,the middle surface is covered by flat sheet steel. Rear Loading Ramps Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable push – button for remote control.Folding type rear ramps length 2500 mm +1500 mm width 900 mm,covered all steel.Rear ramps are sliding internal and external hydraulic. Short steel ramps behind of neck. Color : Upon Request Paint Application Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint. TECHNICAL SPECIFICATIONS Accessories • 2 x 7 pcs of heavy duty lashing rings mounted on the outer frame mushroom type • 4 x Certificated Expray mud flaps. • 1 x Plastic water tank • 2 x Wheel chocks and holders • 2 x 7 Galvanized sides extensions brackets 250 mm + 250 mm • 2 x Side Protections, Aluminium • 1 x Tool box. • 1 x spare Wheel carrier with 1 tire(on the gooseneck) • 2 x Manual support Legs at the rear. • 2 x Reflective tape and reflector sign at the rear and sides. • 2 x Side extensions reflector • Steel front panel(height:400mm) • Aluminum side panels on gooseneck section(height:400mm) • 1 plaque places on rear ramps or bumper = More information = Empty weight: 12.300 kg CE mark: yes COC available: YesVisa fler

BIG Machinery

Schiemerik 1 5334 NL Velddriel Gelderland Nederländerna
