Orkan Kosiarka Orkan KTBC D 140-250 cm flail mower

Pris exklusive moms

Images9
Orkan Kosiarka Orkan KTBC D 140-250 cm flail mower Monterade och påhängda gräsklippare
Orkan Kosiarka Orkan KTBC D 140-250 cm flail mower Monterade och påhängda gräsklippare
Orkan Kosiarka Orkan KTBC D 140-250 cm flail mower Monterade och påhängda gräsklippare
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Monterade och påhängda gräsklippare
Märke / modell
Orkan Kosiarka Orkan KTBC D 140-250 cm flail mower
Tillverkningsår
2024
Övrig utrustning
Ej använd
Uppställningsplats
Miechów, małopolskie
Land
Polen
Mascus ID
4F4F8B42

PRIS

Jämför i annan valuta

DETALJER

Driftform
Övrigt
Totalvikt
841 kg
Arbetsbredd
1 400 mm
Klippsystem
Bakutkast
Skärningsmetod
Roterande
Annan information

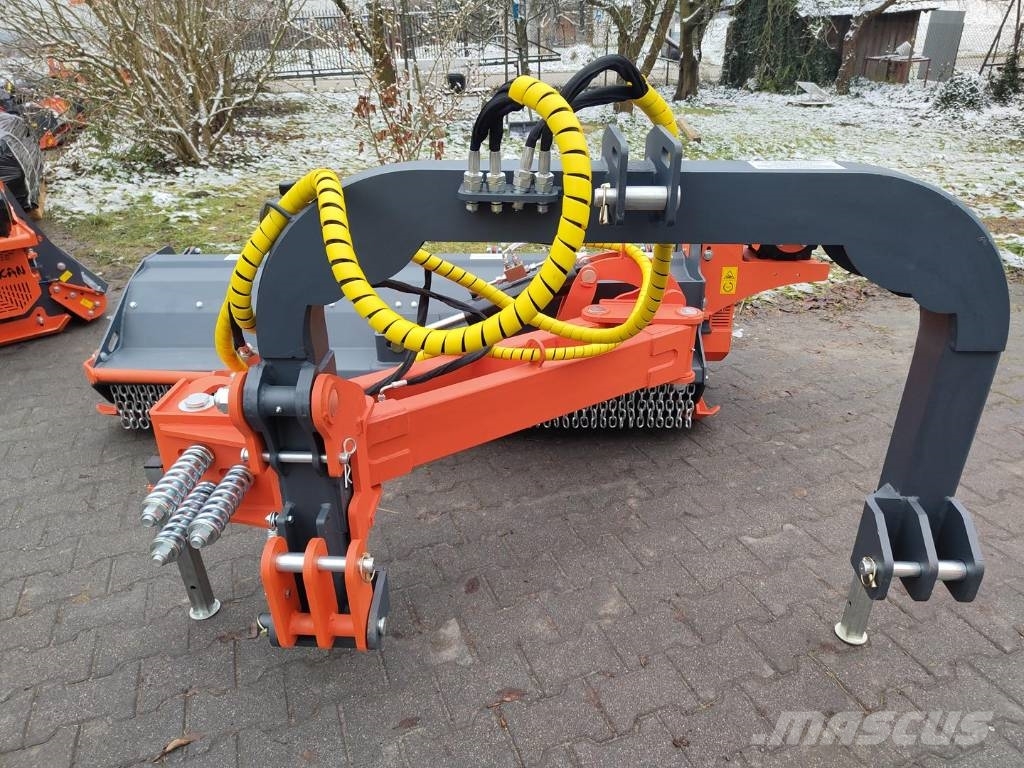

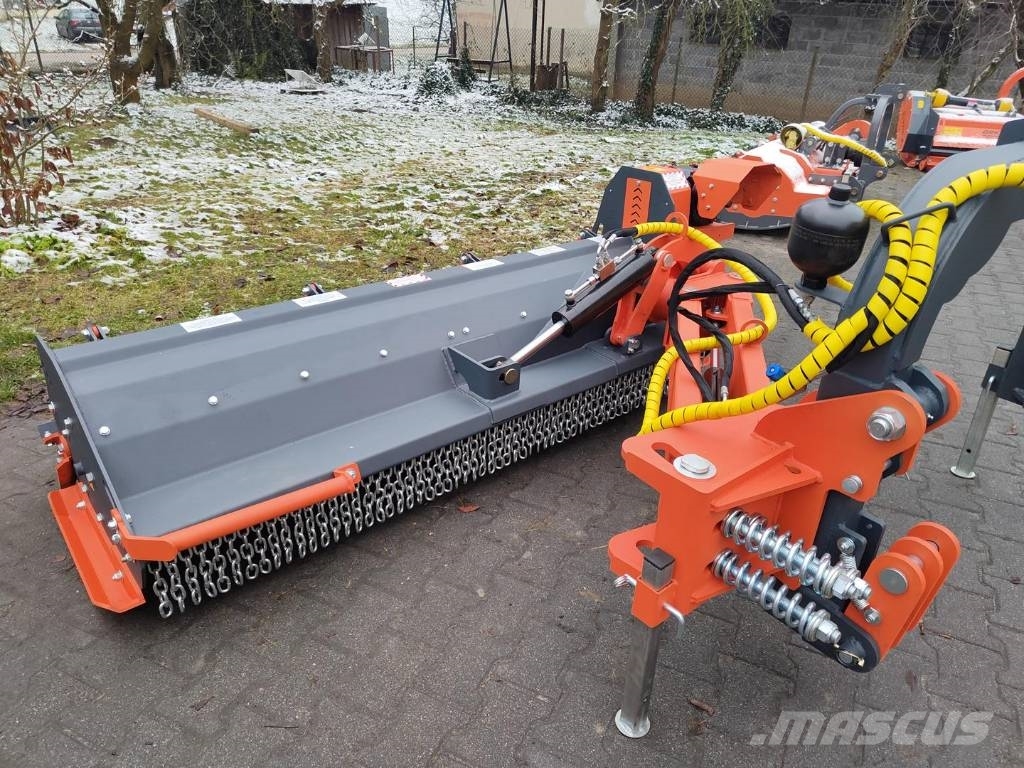

The latest model of the heavy mower on the Orkan KTBC D arm. Even more massive, the next well-known KTBC Z series. The machine is characterized by a massive construction and a number of additional arm protections. Mechanical overrun protection (tilting arm of the three-point linkage mounting), spring protection of the pantograph. The mowing head tilts back by 30 degrees after contact with an obstacle. Hydro-pneumatic protection of the actuator. After contact of the head with an obstacle, the piston rod of the arm actuator folds, causing the pantograph to fold. Powerful rotor, main shaft with a diameter of 170 mm (shaft diameter without mountings and hammers). Driven by 5 drive belts. Three-point linkage mounting cat. II as well as cat. III for larger tractors. Heavy hammers 1.2 kg in a spiral arrangement. In addition, a wide sliding skid, a support roller scraper, hydraulic hoses in an additional cover and safe chain covers protecting the tractor windows as well as the operator himself. An opening rear flap allows for additional ejection of the mown material. Technical data: KTBC 140 D model - working width 140 cm - weight 841 kg - hammers in a spiral arrangement - weight of one hammer 1.2 kg - reach measured from the center of the tractor to the end of the machine 265 cm - number of hammers 14 pcs - gearbox 540 rpm - 3 types of arm protection - main shaft (rotor) 170 mm !!! - cutting height adjustment by skids and support shaft - three-point linkage attachment cat. II and II - hydraulic hoses in protective braiding - additional protective bumper on the head - 12-month warranty - amount without tax (+23%) for KTBC 140 D Tell: 503x579x797Visa fler

Szczepan Bałazy

Celiny Przesławickie 17 32-200 Miechów Małopolskie Polen
