Vahva FORTI 200

Pris exklusive moms

Compnay LOGO
Images6Videos1

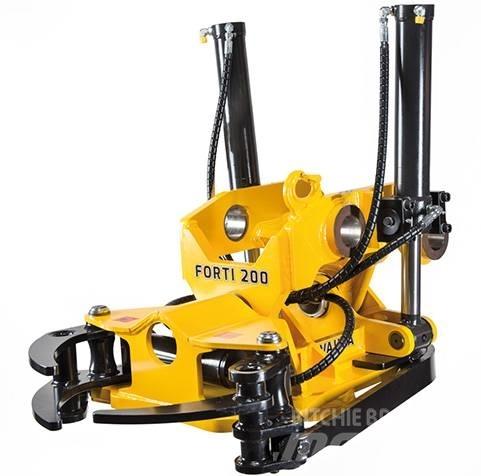

Vahva FORTI 200 Tiltrotator
Vahva FORTI 200 Tiltrotator
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Tiltrotator
Märke / modell
Vahva FORTI 200
Tillverkningsår
2015
Övrig utrustning
Ex demo
Uppställningsplats
Saue
Land
Estland
Allmänt betyg
1
2
3
4
5
Mascus ID
24BE0111

PRIS

Jämför i annan valuta

DETALJER

Lagerid
VR50000
Servicekontrakt
Ja
Passar till följande maskiner
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

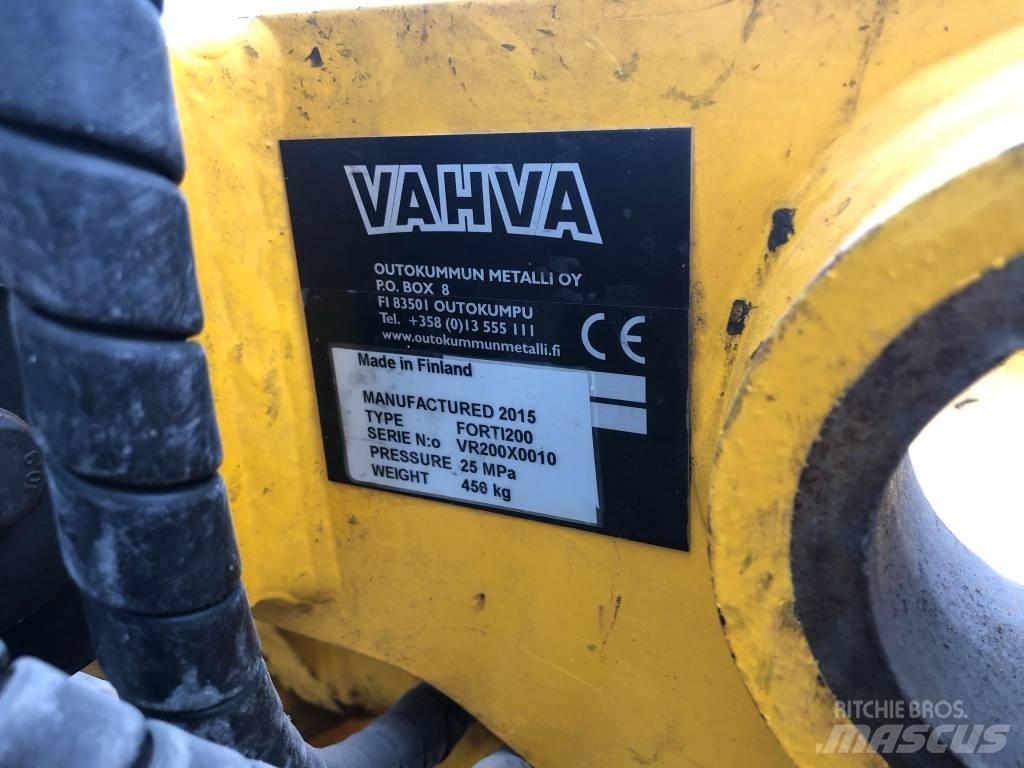

Serienummer
VR200X0010
Arbetstryck
250 bar
Hydraulflödesbehov
80 l/min
Transportvikt
450 kg
Transportmått (LxBxH)
990 x 720 x 280 mm
Tillverkningsland
Finland
Leveransvillkor
EXW
Certifikat
CE
Annan information
A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Visa fler

Sautec AS

Tule 10 76505 Saue Harjumaa Estland
