Casagrande B175XP
Pris exklusive moms
Pris på begäran
Skriv ut
INFO
Produktgrupp
Pålningsriggar
Märke / modell
Casagrande B175XP
Tillverkningsår
2018
Drifttimmar
4 170 h
Uppställningsplats
Middlesbrough, Cleveland
Land
Storbritannien
Allmänt betyg
1
2
3
4
5
Mascus ID
D44F3DE1
DETALJER
Lagerid
PF 40558
Skick och Garanti
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
Tillverkningsland
Colombia
Certifikat
CE
Annan information

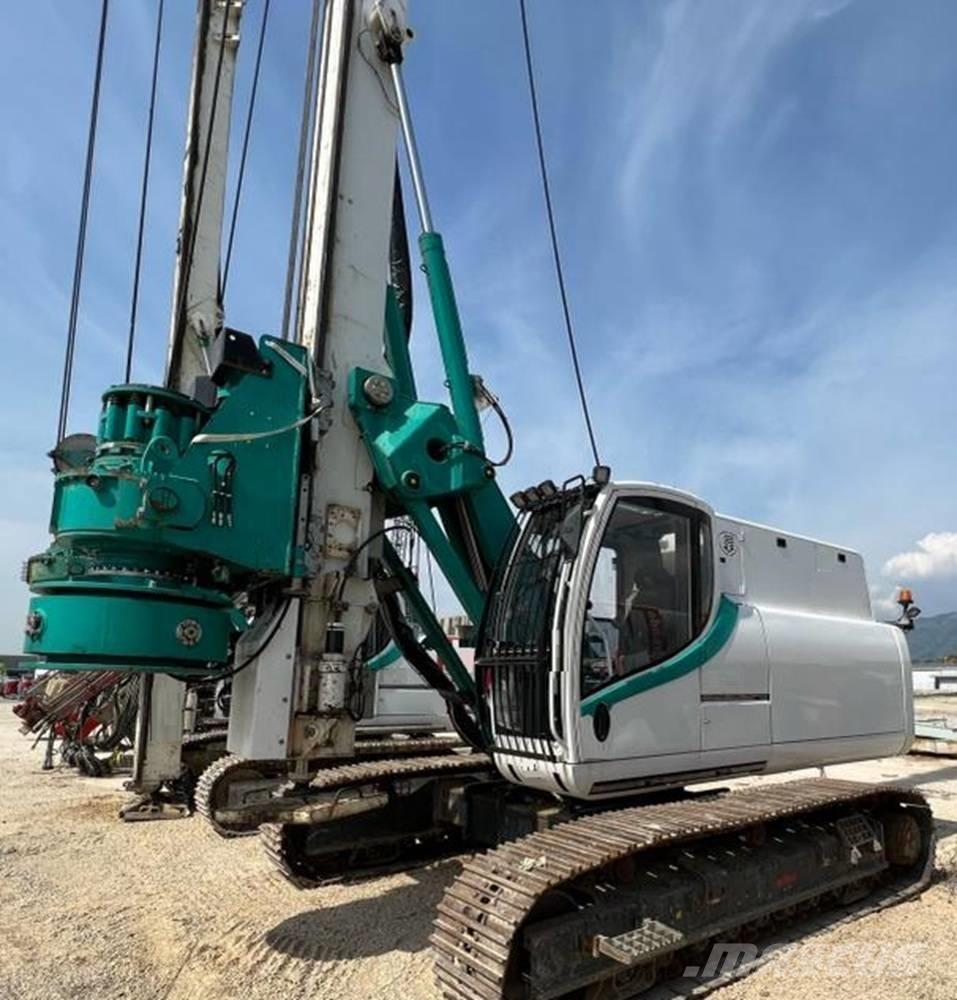

Piling rig with 4170 working hour
Capable of bored piles, CFA & FDP

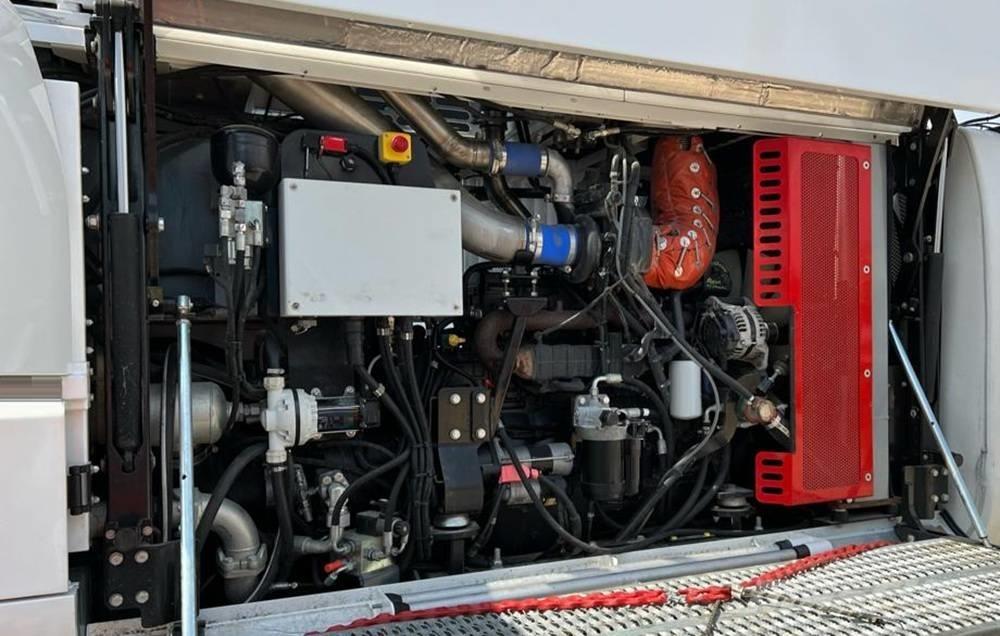

Engine – Cummins QSB 6.7 194kW @ 2200rpm (Stage 4 / Tier 4F)
Undercarriage 2500-3700mm (closed-open)
Rotary head – H18 (max torque 175kNm with cardan joint)
Winches – 160kN main, 70kN auxiliary
Pull down winch – Crowd/extraction force 280kN, stroke 12,300mm
Kelly bar – 4 x 7.5m interlocking (kelly box 130x130mm, diameter 355mm)
Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
CE Certified
