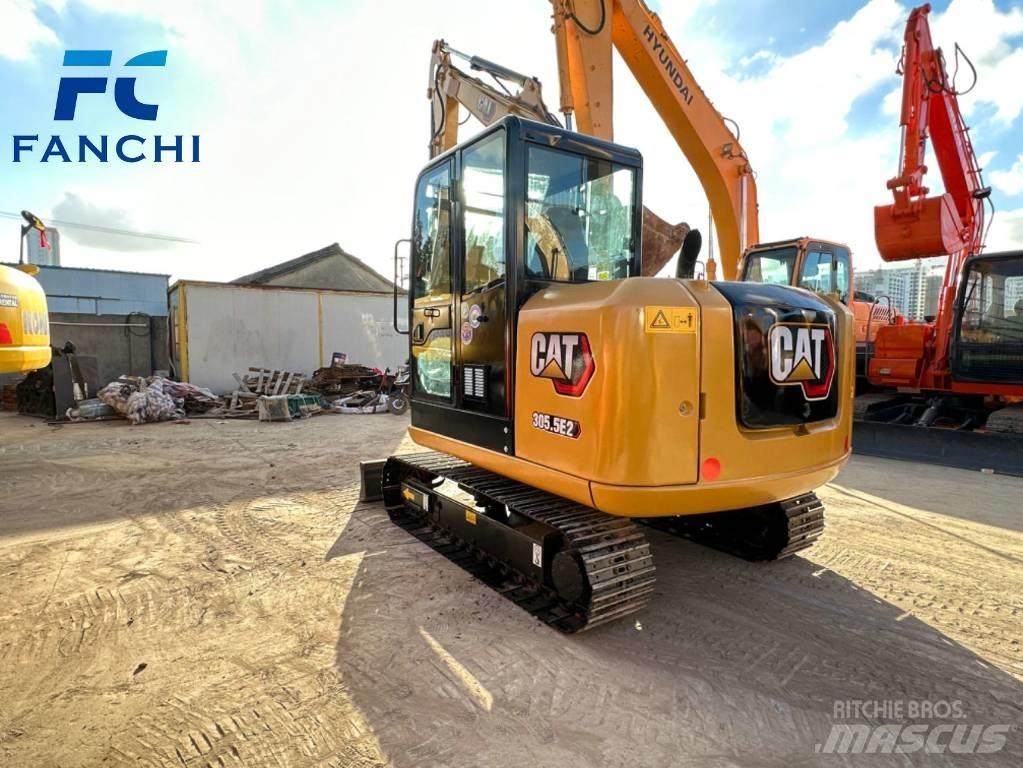

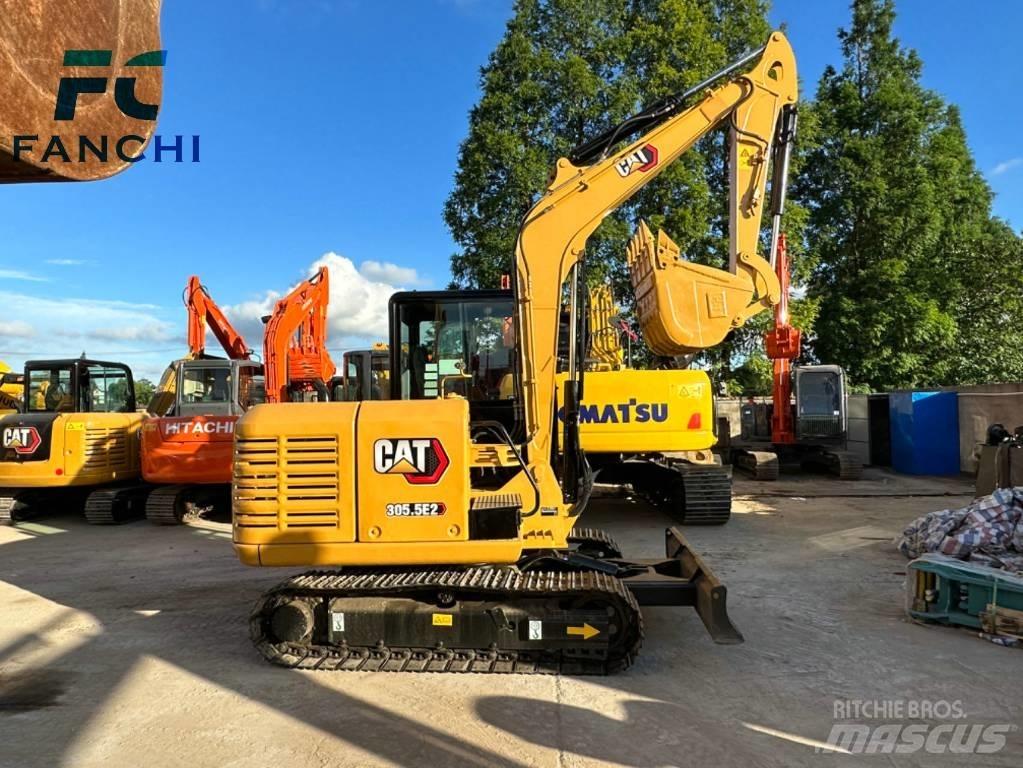

CAT CAT305.5E2

Pris exklusive moms

FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Minigrävare < 7t
Märke / modell
CAT CAT305.5E2
Tillverkningsår
2024
Drifttimmar
450 h
Övrig utrustning
Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
77BC2619

PRIS

Jämför i annan valuta

DETALJER

Driftform
Diesel
Servicekontrakt
Ja
Antal tidigare ägare
1

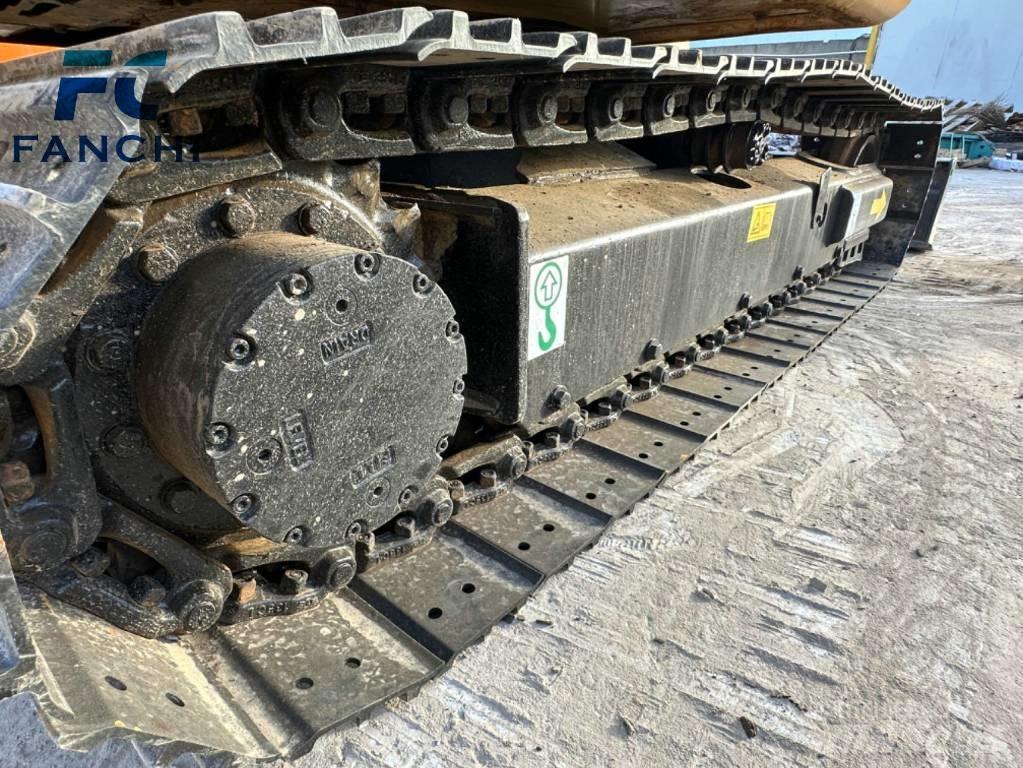

Underredets skick
good
Totalvikt
5 500 kg
Miljömotor
Steg V
Bandbredd
400 mm
Skopvolym
0,22 m3
Transportmått (LxBxH)
576519502.54 m
Originalfärg
YELLOW
Sticklängd
960 mm
Motor
Cat C2.4 DI
Motoreffekt
34,1 kW (46,4 hk)
Motortillverkare
JAPAN
Skick och Garanti
good
Tillverkningsland
Japan
Leveransvillkor
FOB, CIF, EXW
Certifikat
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Tillbehör
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Entreprenad tillbehör
Kvist vajer
Luftkonditionering
Ytterligare hydraulik
Ad Blue
Visa fler
Annan information
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Visa fler

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
