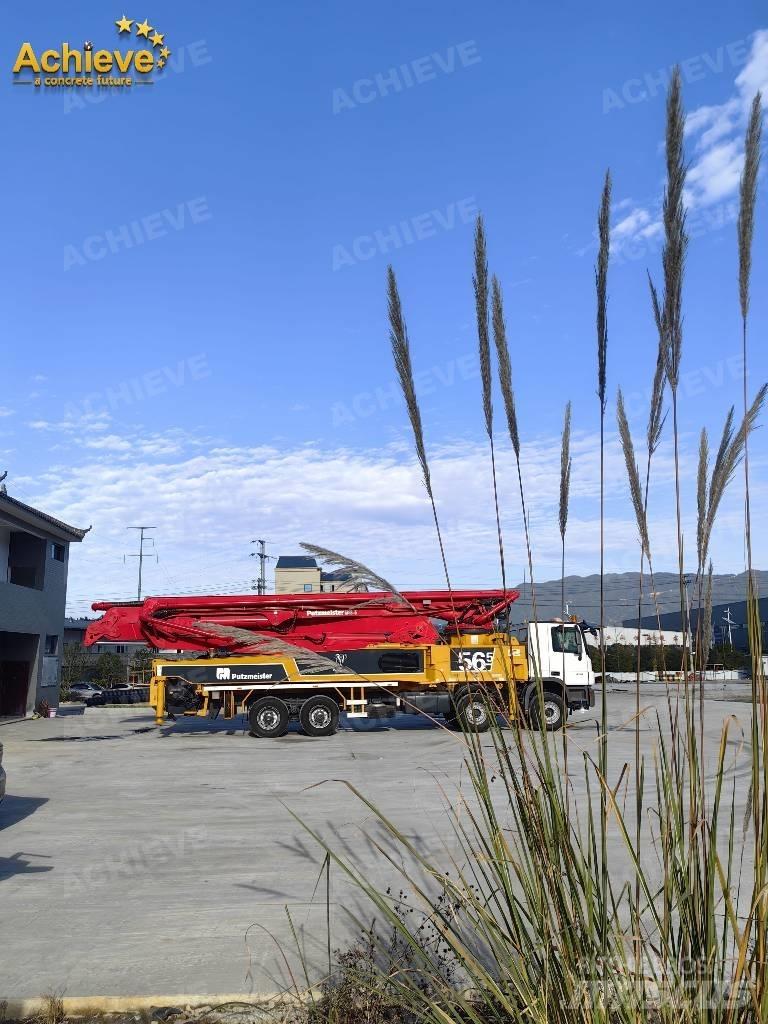

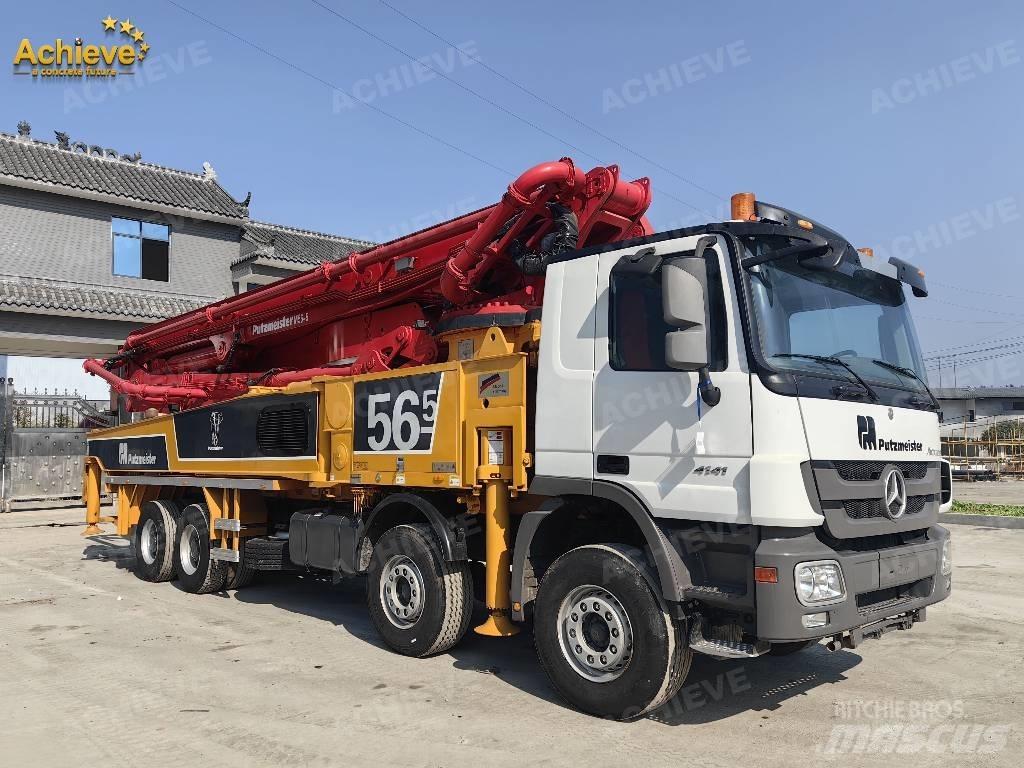

Putzmeister M56-5
Pris exklusive moms
Skriv ut
INFO
Produktgrupp
Lastbilar med betongpump
Märke / modell
Putzmeister M56-5
Tillverkningsår
2017
Drifttimmar
3 000 h
Övrig utrustning
Rekonditionerad,Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
379C7292
PRIS
Jämför i annan valuta
DETALJER
Lagerid
AICPT028
Antal bomsektioner
5
Senast besiktigad
2024-09-26
Totalvikt
32 000 kg
Kranarmslängd
3 m
Högsta vågräta räckvidd
49,9 m
Max räckvidd
55,1 m
Förflyttnings typ
Fast monterad
Pump krafts typ
Diesel
Pump kraft
300 kW
Transportmått (LxBxH)
14100 x 2500 x 4000 mm
Miljömotor
Steg V
Motortillverkare
Ergonic3. EU Version
Pumptyp
Pistongpump
Tillverkare av chassi
Mercedes Benz
Däckmärke
Mercedes Benz
Tillverkningsland
China
Leveransvillkor
FOB, CIF
Certifikat
EPA, CE, TÜV
Tillbehör
Technical Details
General Information
Arms
5
Folding Type
RZ-Folding
Vertical Reach
55.1 m
Horizontal Reach gross
49.9 m
Horizontal Reach net
45.6 m
Reach Depth
40.3 m
Unfolding Height
15.6 m
Slewing Range
365 degree
End Hose - Length
3 m
Delivery Line (DN, Pressure)
DN125/5.5 / 85 mm/bar
Support width Standard (front-rear)
9.0 / 12.4 m
Support width OSS (front-rear)
5.9 / 8.1 m
Support width iSC (front/rear)
2.6-9 / 3-12.4 m
Length x Width x Height
14.1 x 2.5 x 4 mm
Configuration
Concrete Pump .19 iLS
Concrete Pump .17 iLS
Concrete Pump .16 H LS
Concrete Pump .16 H
Delivery Cylinder Diameter - Stroke Length
250/2100 mm
Output (piston side)
190 m³/hr
Delivery Pressure (piston side)
85 bar
Strokes (piston side)
30
Annan information
The Putzmeister M56-5 truck-mounted concrete pump is ideal for industrial or high-rise building projects which require large radius of distribution and high performance. The M56-5 is compact, reliable, easily manageable, and economical. As an option this truck-mounted concrete pump can be mounted on a 4 axle (for countries outside of Europe) or 5 axle chassis of various manufacturers.
The new fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again.
Key Features
Longlife design for tough jobs - industry leader with light steel design
Maximum safety through closer consideration for current standards and guidelines
Service-friendly as a result of its optimised accessibility and consistent bolted concept
Minimal service costs thanks to maintenance-free components
Longest steel boom on 4 axles
Achieve Innovations
5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
