INFO

Produktgrupp

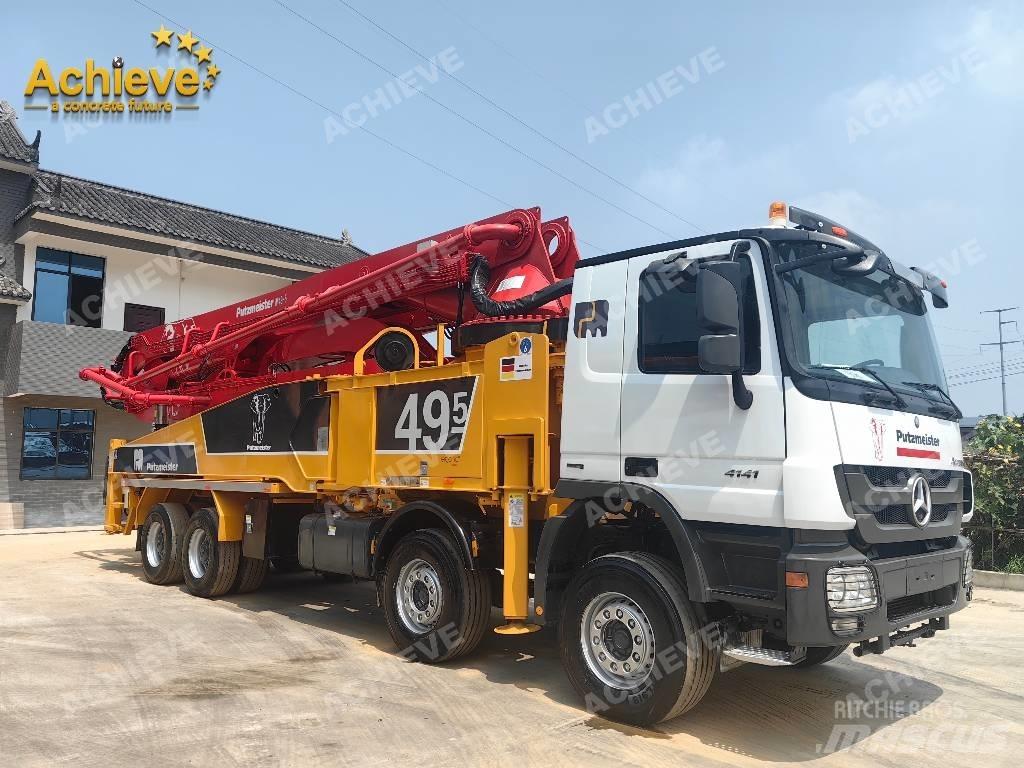

Lastbilar med betongpump
Märke / modell
Putzmeister M49-5
Tillverkningsår
2013
Drifttimmar
3 000 h
Övrig utrustning
Rekonditionerad,Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
8A178F24

PRIS

Jämför i annan valuta

DETALJER

Lagerid
AICPT026
Antal bomsektioner
5
Senast besiktigad
2024-09-26
Totalvikt
32 000 kg
Kranarmslängd
400 cm
Högsta vågräta räckvidd
3 730 cm
Max räckvidd
4 160 cm
Förflyttnings typ
Fast monterad
Pump krafts typ
Diesel
Pump kraft
300 kW
Transportmått (LxBxH)
11500 x 2500 x 4200 mm
Miljömotor
Steg V
Motortillverkare
Mercedes Benz OM501LA.III/17
Pumptyp
Pistongpump
Tillverkare av chassi
Mercedes Benz
Däckmärke
Mercedes Benz
Tillverkningsland
China
Leveransvillkor
FOB, CIF
Certifikat
EPA, CE, TÜV
Tillbehör
Boom M 42-5 Sections 5 Reach height m 41.6 Horizontal reach gross m 37.3 net m 34.5 Reach depth max. m 31.0 Unfolding height m 8.6 End hose length m 4 Folding system RZ Delivery line DN 125 Pump BSF .16 H .17 i LS Rod side Output m³/h 160 - Delivery pressure bar 85 - Strokes 1/min. 31 - Piston side Output m³/h 108 170 Delivery pressure bar 130 85 Strokes 1/min. 21 27 Delivery cylinder Ø mm 230 250 Stroke mm 2100 2100
Annan information
Truck-mounted concrete pump 49-5 Efficiency and flexibility on 4 axles Get ahead with 5 arms 49-5, this means a 49 m vertical reach distributed over 5 arms with a compact design in roll Z-folding system. 5 arms, this means a high degree of versatility. Optimized kinematics also ensures that there is no noticeable dead space. A placing boom in roll Z-folding system combines a compact design with a low unfolding height, optimum slip characteristics and the best use of the horizontal reach from the front edge of the truck. This means that you benefit from the advantages of the roll and of the Z-folding system in an economic way. Get closer to the action with less space requirement Set-up times can be kept as short as possible. With the TRDI support developed by Putzmeister, you save time and space, without compromising on safety. Double telescoping support legs can also be securely placed in minimal spaces between obstacles. Thanks to the optional One Side SupportVisa fler

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
