Putzmeister M46-5

Pris exklusive moms

Images58Videos1

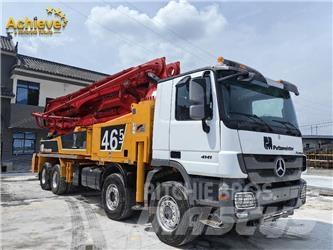

Putzmeister M46-5 Lastbilar med betongpump
Putzmeister M46-5 Lastbilar med betongpump
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Lastbilar med betongpump
Märke / modell
Putzmeister M46-5
Tillverkningsår
2013
Drifttimmar
3 000 h
Övrig utrustning
Rekonditionerad,Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
FF862F64

PRIS

Jämför i annan valuta

DETALJER

Lagerid
AICPT016
Antal bomsektioner
5
Senast besiktigad
2024-09-26
Totalvikt
32 000 kg
Kranarmslängd
300 cm
Högsta vågräta räckvidd
4 110 cm
Max räckvidd
4 610 cm
Förflyttnings typ
Fast monterad
Pump krafts typ
Diesel
Pump kraft
300 kW
Transportmått (LxBxH)
11850 x 2500 x 4000 mm
Miljömotor
Steg V
Motortillverkare
Ergonic3. EU Version
Pumptyp
Pistongpump
Tillverkare av chassi
Mercedes Benz
Däckmärke
Mercedes Benz
Leveransvillkor
FOB, CIF
Certifikat
EPA, CE, TÜV
Tillbehör
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Annan information
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducVisa fler
