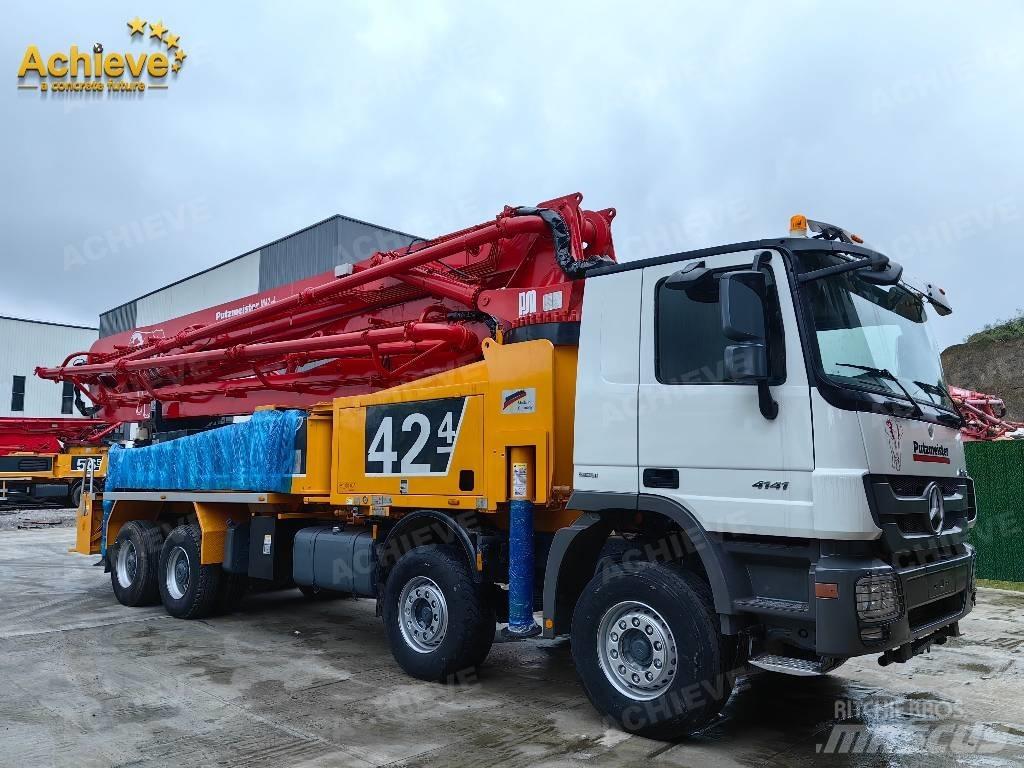

Putzmeister M42-4
Pris exklusive moms
Skriv ut
INFO
Produktgrupp
Lastbilar med betongpump
Märke / modell
Putzmeister M42-4
Tillverkningsår
2014
Drifttimmar
3 000 h
Övrig utrustning
Rekonditionerad,Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
C8CCEE59
PRIS
Jämför i annan valuta
DETALJER
Lagerid
AICPT010
Antal bomsektioner
5
Senast besiktigad
2024-09-26
Totalvikt
26 000 kg
Kranarmslängd
4 m
Högsta vågräta räckvidd
37,3 m
Max räckvidd
41,6 m
Förflyttnings typ
Fast monterad
Pump krafts typ
Diesel
Pump kraft
300 kW
Transportmått (LxBxH)
11500 x 2500 x 4200 mm
Miljömotor
Steg V
Motortillverkare
Ergonic3. EU Version
Pumptyp
Pistongpump
Tillverkare av chassi
Mercedes Benz
Däckmärke
Mercedes Benz
Tillverkningsland
China
Leveransvillkor
FOB, CIF
Certifikat
EPA, CE, TÜV
Tillbehör
Technical Details
General Information
Arms
5
Folding Type
RZ-Folding
Vertical Reach
41.6 m
Horizontal Reach gross
37.3 m
Horizontal Reach net
34.5 m
Reach Depth
31 m
Unfolding Height
8.6 m
Slewing Range
365 degree
End Hose - Length
4 m
Delivery Line (DN, Pressure)
DN125/5.5 / 85 mm/bar
Support width Standard (front-rear)
7.5 / 8.3 m
Support width OSS (front-rear)
5.0 / 6.4 m
Support width iSC (front/rear)
2.6-7.5
Length x Width x Height
11.35 x 2.5 x 4 mm
Total Weight (approx.)
under 32000 kg
Configuration
Concrete Pump .17 iLS
Concrete Pump .16 H LS
Concrete Pump .16 H
Delivery Cylinder Diameter - Stroke Length
250/2100 mm
Output (piston side)
170 m³/hr
Delivery Pressure (piston side)
85 bar
Strokes (piston side)
27
Annan information
The Putzmeister M42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the M42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons.
Key Features
A gross weight of less than 32 t includes sufficient reserves for payload and operating materials
Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure
Efficient work through consistently clever ergonomic design
Even better safety through closer consideration for current standards and guidelines
Service-friendly as a result of its optimised accessibility and consistent bolted concept
Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard deli
