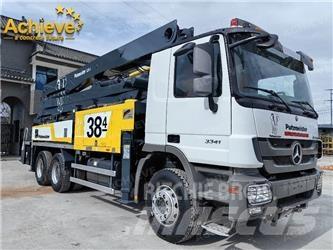

Putzmeister M38-4
Pris exklusive moms
Skriv ut
INFO
Produktgrupp
Lastbilar med betongpump
Märke / modell
Putzmeister M38-4
Tillverkningsår
2012
Drifttimmar
3 000 h
Övrig utrustning
Rekonditionerad,Remanufactured
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
DBCC6170
PRIS
Jämför i annan valuta
DETALJER
Lagerid
AICPT008
Antal bomsektioner
4
Senast besiktigad
2024-09-26
Servicekontrakt
Ja
Totalvikt
26 000 kg
Kranarmslängd
4 m
Högsta vågräta räckvidd
32,4 m
Max räckvidd
35,6 m
Förflyttnings typ
Fast monterad
Pump krafts typ
Diesel
Pump kraft
300 kW
Transportmått (LxBxH)
11500 x 2500 x 3900 mm
Miljömotor
Steg V
Motortillverkare
Mercedes Benz OM501LA.III/17
Pumptyp
Pistongpump
Tillverkare av chassi
Mercedes Benz
Däckmärke
Mercedes Benz
Tillverkningsland
China
Leveransvillkor
FOB, CIF
Certifikat
EPA, CE, TÜV
Tillbehör
General Information
Arms
5
Folding Type
RZ-Folding
Vertical Reach
37.5 m
Horizontal Reach gross
32.8 m
Horizontal Reach net
30.3 m
Reach Depth
25.3 m
Unfolding Height
7.4 m
Slewing Range
365 degree
End Hose - Length
4 m
Configuration
Concrete Pump .17 iLS
Concrete Pump .16 H LS
Concrete Pump .16 H
Delivery Cylinder Diameter - Stroke Length
250/2100 mm
Output (piston side)
170 m³/hr
Delivery Pressure (piston side)
85 bar
Strokes (piston side)
27
Annan information
Putzmeister M38-5 is the perfect truck-mounted concrete pump for medium to high-volume concrete pours. It can also be used for universal job sites. It is consistently efficient thanks to clever ergonomic design. It is also safer than before considering the current standards and guidelines. This truck mounted concrete pump can be mounted on Chassis of various manufacturers as well as on 3-axles and 4-axles chassis.
Key Features
A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials
Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure
Efficient work through consistently clever ergonomic design
Even better safety through closer consideration for current standards and guidelines
Service-friendly as a result of its optimised accessibility and consistent bolted concept
Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 s
