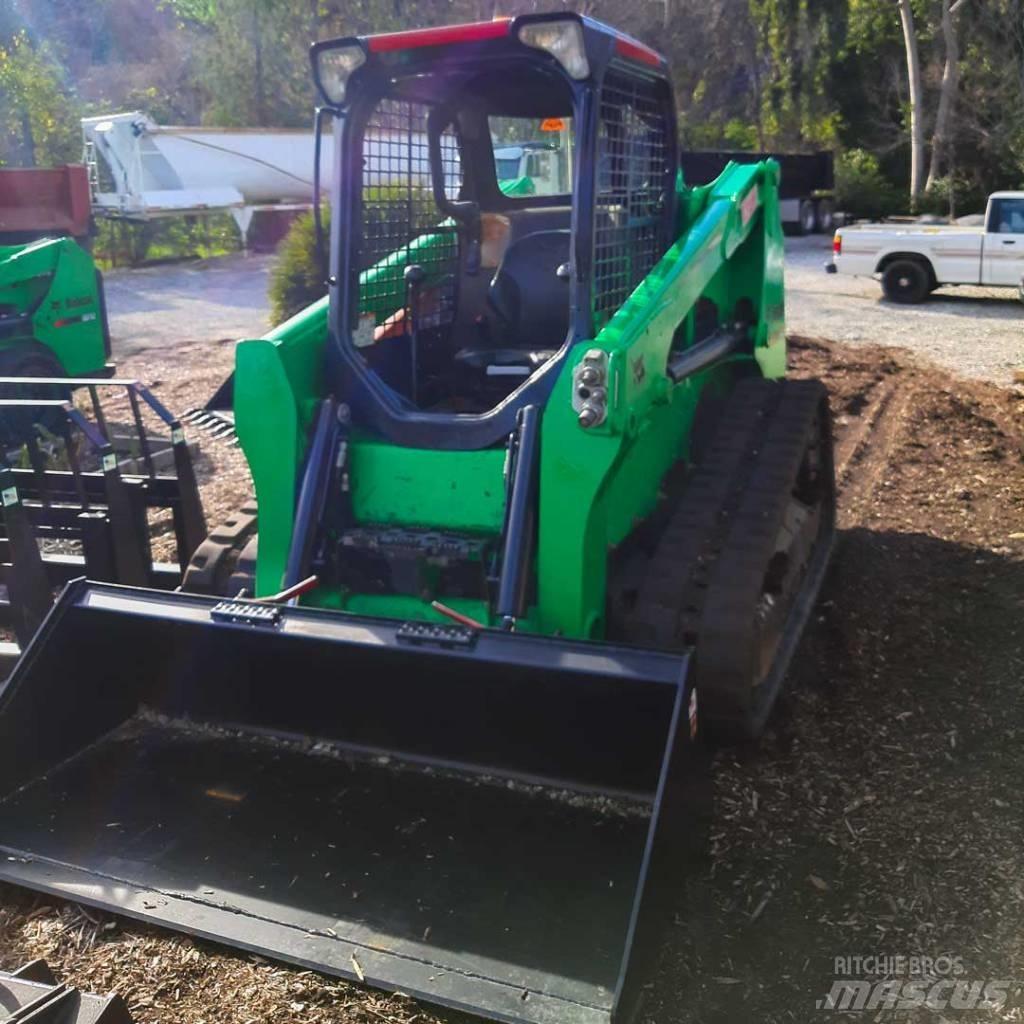

Bobcat T 630
Pris exklusive moms
10
Markera som favorit
Dela
Spara sökningSkriv ut
INFO
Produktgrupp
Kompaktlastare
Märke / modell
Bobcat T 630
Tillverkningsår
2016
Drifttimmar
1 900 h
Uppställningsplats
Claremont, California
Land
United States
Allmänt betyg
1
2
3
4
5
Mascus ID
C8F120EB
PRIS
Jämför i annan valuta
DETALJER
Skada
Fungerar som den ska
Motor
V3307-DI-TE3
Motoreffekt
54,7 kW (74,3 hk)
Motortillverkare
Bobcat
Annan information
2016 Bobcat Skid Steer Compact Loader, Kubota Diesel Engine, Liquid Cooled, 74HP, Turbo Charged, Fully Hydrostatic, Rubber Track Drive, AC, & LoJack, All-Maintenance Points Serviced! 1,900 hours, Ready to work!
Engine
-Make: Kubota
-Model: V3307-DI-TE3
-Engine Tier: Interim Tier IV
-Fuel: Diesel
-Cooling: Liquid
-Horsepower: SAE J1995 Gross - 74.3 HP at 2400 RPM ISO 9249 EEC SAE J1349 Net - 70.3 HP at 2400 RPM
-Torque: SAE J1995 Gross - 195.0 ft.-lb. at 1600 RPM ISO 9249 EEC SAE J1349 Net - 186.7 ft.-lb. at1600 RPM
-Low Idle RPM: 1250 - 1450
-High Idle RPM: 2525 - 2650
-Number of Cylinders: 4
-Displacement: 203 cu. in.
-Bore Stroke: 3.70 in. 4.72 in.
-Lubrication: Gear Pump Pressure System with Filter
-Crankcase Ventilation: Closed Breathing
-Air Cleaner: Dry replaceable paper cartridge with separate safety element
-Ignition: Diesel - Compression
-Air Induction: Turbo-Charged
-Engine Coolant: Propylene Glycol Water Mixture
-Starting Aid: Glow Plugs - Automatically activated as needed in RUN position.
Drive System
-Main Drive: Fully hydrostatic, rubber track drive
-Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic drive motors
-Tracks (Tension): Grease cylinder and spring
Controls
-Vehicle Steering: Direction and speed controlled by two hand operated steering levers or optional joystick(s)
Loader Hydraulics
-Lift and Tilt: Controlled by separate foot pedals or optional Advanced Control System (ACS)
-Front Auxiliary: Controlled by electrical switch on Right Hand steering lever or joystick
-Auxiliary Pressure Release: Pressure relieved through quick couplers; Push couplers in, hold for 5 seconds
-Engine: Hand lever speed control; key-type start switch or optional Deluxe Instrumentation Panel and function error shutdown.
-Starting Aid: Glow plugs automatically activated as needed by Instrument Panel
-Service Brake: Two independent hydrostatic systems controlled by two hand operated steering evers or optional joystick(s)
-Secondary Brake: One of the hydrostatic transmissions
-Parking Brake (Standard): Spring applied pressure release multi-disk brake activated by manually operated switch on left instrument panel
Hydraulic System
-Pump Type: Engine driven, gear type
-Pump Capacity - Standard: 23.0 GPM
-Pump Capacity - High-Flow Option: 30.5 GPM
-System Relief at Quick Couplers: 3450 - 3550 PSI
-Filter (Hydraulic Hydrostatic): Replaceable beta 10 micron = 200, drop in element
-Filter (Charge): Replaceable beta 10 micron = 200, drop in element
Hydraulic Cylinders: Double-acting; tilt cylinders have cushioning feature on dump and rollback
-Bore Diameter: Lift Cylinder (2) - 2.50 in. Tilt Cylinder (2) - 3.00 in.
-Rod Diameter: Lift Cylinder (2) - 1.75 in. Tilt Cylinder (2) - 1.63 in.
-Stroke: Lift Cylinder (2) - 33.87 in. Tilt Cylinder (2) - 13.97 in.
-Control Valve - Standard: 3-Spool, open center, manually operated with spring detent for lift float and electrically controlled auxiliary spool
-Control Valve - ACS and SJC: 3-Spool, open center with electric actuator controlled lift with float and tilt. Electrically controlled auxiliary spool
-Fluid Lines: SAE Standard tubelines, hoses and fittings
-Fluid Type: BOBCAT FLUID, Hydraulic Hydrostatic 6903117 - (Two - 2.5 Gal.) 6903118 - (5 Gal.) 6903119 - (55 Gal.)
Hydraulic Function Time
-Raise Lift Arms: 3.4 Seconds
-Lower Lift Arms: 3.0 Seconds
-Bucket Dump: 2.3 Seconds
-Bucket Rollback: 1.7 Seconds
Capacities
-Fuel: 27.3 Gal.
-Engine Oil with Filter Change: 12.0 qt.
-Engine Cooling System: with Heater - 3.1 Gal. without Heater - 3.0 Gal.
-Hydraulic Hydrostatic Reservoir: 2.7 Gal.
-Hydraulic Hydrostatic System: 11.0 Gal.
-Hydrostatic Drive Motor (Each): 7.1 fl. oz.
(NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)Visa fler
