Everest 7.833

Pris exklusive moms

Compnay LOGO
Images2
Everest 7.833 Entreprenad - Övrigt
Everest 7.833 Entreprenad - Övrigt
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Entreprenad - Övrigt
Märke / modell
Everest 7.833
Tillverkningsår
2015
Uppställningsplats
Los Angeles, California
Land
United States
Mascus ID
3DCC1DAD

PRIS

Jämför i annan valuta

DETALJER

Serienummer
UNKNOWN
Annan information

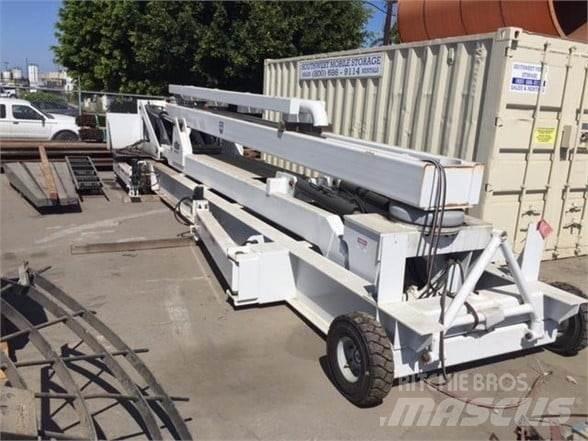

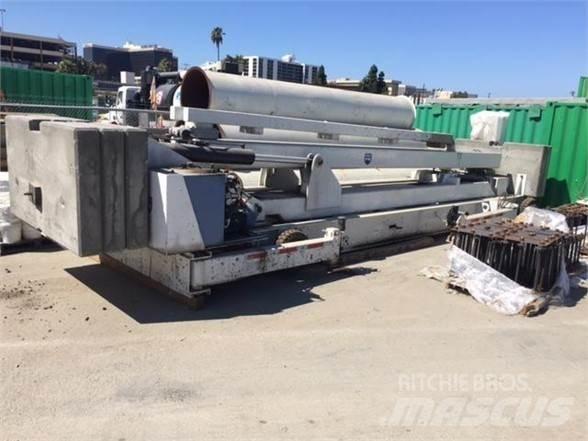

Description: custom made concrete distribution units Parameters: Max Reach for Areas 60’/65’ Max Reach Walls at 65 25’ Max Width 7’ 10” Min. Height Operating 5’ 6” Max Height Parked 5’ 6”  of Pipe 5” Approx. Weight operating 13T System: The Distributor Unit is laid out to be used on walls/mezzanine or invert areas, being able to reduce its height to a minimum if requested. The whole Pipe System has been designed for an easy replacement, connected by rapid couplings. The distribution unit is operated by one man, using the remote control box or the pushbuttons on the electric cupboard. Technical Details: The Distribution Unit consists of the following main features/components: -Main Frame with 4 outriggers -Outriggers with hydraulic foot -2x2 Wheels in the rear -1 x Pivotable axle with 2 single wheels and tow-bar -One bearing mounted base with counter-balance weight rotation of 360 (+/- 180) -Main bearing  1000mm (3’ 3 1/3”) with gear -One basic arm with a rotatable end element with bearing for arm 2 -Arm Number 2 with support joint for Arm 3 -Concrete pipe with elbows and couplings, using only reinforced elbows and pipes -Electro Hydraulic plant with a) Motor/gear/brake for main bearings b) Motor/gear/brake for second bearing c) Hydraulic cylinders -2 x 120 x 750/75 -2 x 100 x 750/63 -2 x 180 x 750/36 -4 x 100 x 300 d) Electro valves for 5 main operations e) Safety valves f) Double pump drive system g) Pipes, hoses, fittings (jic) -Remote Control with movement selection and joystick -One electric cupboard with motor protection and manual push buttons on the outside -4 manual valves for the outriggers with retaining valves Total Weight 28,500lbsVisa fler

The Walsh Group

2711 E 112th St 60617 Chicago Illinois United States
