Shantui SD20-5

Pris exklusive moms

Pris på begäran

Compnay LOGO
Images1

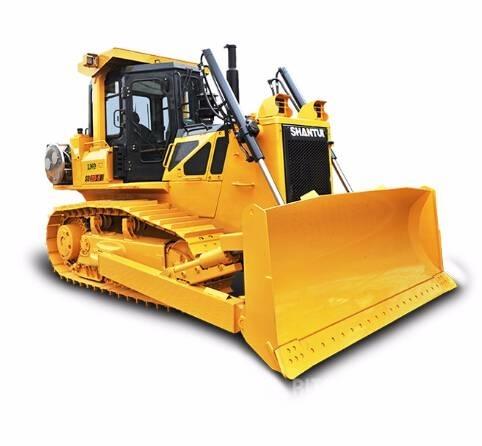

Shantui SD20-5 Bandschaktare
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Bandschaktare
Märke / modell
Shantui SD20-5
Tillverkningsår
2018
Övrig utrustning
Ej använd
Uppställningsplats
Jining, Shandong, China
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
96691108

DETALJER

Lagerid
SD20-5
Senast besiktigad
yes
Servicekontrakt
Ja
Arbetsbredd
437 cm
Serienummer
SD20-5
Totalvikt
20 kg
Bladtyp
Rakt blad
Underrede
Bandvagn
Hyttyp
Sluten hytt
Miljömotor
Steg II
Motor
Weichai WD12G220E23
Motoreffekt
147 kW (200 hk)
Bandbredd
610 mm
Växellåda
Shantui
Transportmått (LxBxH)
6700 x 4370 x 3300 mm
Originalfärg
yellow
Däckmärke
Shantui
Skick och Garanti
ISO9001
Framdäckens kondition
100
Tillverkningsland
China
Utrustad för
propertynames.pp_equippedfor_2100012
Leveransvillkor
FOB, CFR, CIF, EXW
Certifikat
EPA, CE, ANSI
Entreprenad tillbehör
Vinsch
Luftkonditionering
Ytterligare hydraulik
Singel-rivtand
Visa fler
Annan information
Technical Features ● It’s equipped with Weichai WP12G220E33NG engine with power output at 200ps to realize low carbon emission and high environmental-friendliness by reducing the harmful gas emission by >90% and effectively prolong the service life of engine due to sufficient combustion of LNG without carbon deposit, featuring low operating cost and significant comprehensive benefits. ● The rear four-point shock-absorbing installation is adopted for the gas system. The multi-layer insulated high vacuum tank body features high safety, with the capacity at 500L and the maximum filling capacity at 196KG, which is enough for 12h continuous working. ● The installed temperature controlled system features excellent energy-saving and consumption reduction and high economy and environmental-friendliness. ● The independently developed control program implements real-time monitoring on the engine and temperature controlled fan. ● The bogie adopts central hinge type suspension installation, without splayed beam, to reduce the impact on the drive system. ● The drive system adopts modular design and double shock-absorbing installation to ease the maintenances and improve the reliability and comfort of the whole machine. ● The high pressure low flow hydraulic system is adopted to reduce the volume of hydraulic units and achieve compact and reasonable structural layout. ● The externally installed operating valves ensure easier checking and maintenances. ● The hydraulic pilot control is adopted for the working device. ● The mechanical operations by single joystick are adopted for the gearshift and the steering. ● It features comfortable, labor-saving, accurate, flexible operations, rapid response, and improved efficiency. ● The structure of high strength special-shaped tubes, labyrinth seals, and four-point shock-absorbing installation feature low noise and vibration and high comfort and safety. ● SD20-5LNG is equipped with standard straight tilting blade and optional U-blade to provide operation possibility for the regions of higher environmental-friendly requirements. Performance Parameters Length × width × height (mm) (excluding ripper) 5450×3450×3255 Operating weight(t) (excluding ripper) 19.9 Engine model WP12G220E33NG Net power/rated speed (kW/rpm) 149/1200~1600 Ground pressure(Mpa) 0.065 Blade type U-blade Blade capacity(m3) 4.5 Applicable Working Conditions Applicable for the concentrated freight operations in material distribution centers (such as ports and coal yards) and for the operations in the sites with convenient gas refilling installation.Visa fler

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
