Shantui SD08YS

Pris exklusive moms

Pris på begäran

Compnay LOGO
Images1

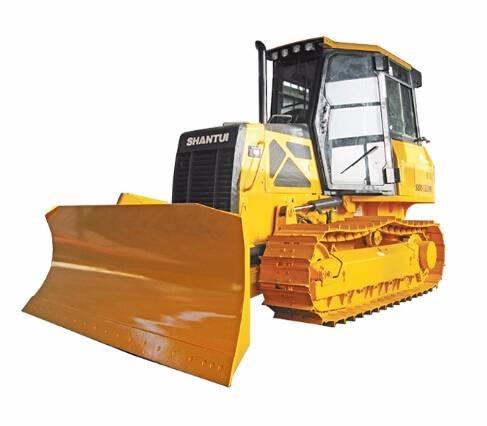

Shantui SD08YS Bandschaktare
FavoriteMarkera som favorit
shareDela
Save searchSpara sökning
Skriv ut

INFO

Produktgrupp
Bandschaktare
Märke / modell
Shantui SD08YS
Tillverkningsår
2018
Övrig utrustning
Ej använd
Uppställningsplats
Jining, Shandong, China
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
9D8BD851

DETALJER

Lagerid
SD08YS
Senast besiktigad
yes
Servicekontrakt
Ja
Arbetsbredd
320 cm
Serienummer
SD08YS
Totalvikt
8 020 kg
Bladtyp
Rakt blad
Underrede
Bandvagn
Miljömotor
Steg IIIB
Hyttyp
Sluten hytt
Motor
Cummins QSB3.3
Motoreffekt
58,2 kW (79,1 hk)
Bandbredd
610 mm
Växellåda
Shantui
Transportmått (LxBxH)
4300 x 3200 x 2800 mm
Originalfärg
yello
Däckmärke
Shantui
Skick och Garanti
ISO9001
Framdäckens kondition
100
Tillverkningsland
China
Utrustad för
propertynames.pp_equippedfor_2100012
Leveransvillkor
FOB, CFR, CIF, EXW
Certifikat
EPA, CE, ANSI
Entreprenad tillbehör
Vinsch
Luftkonditionering
Ytterligare hydraulik
Singel-rivtand
Visa fler
Annan information
Technical Features ● The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ● The built-in radiator features high heat exchange efficiency, in which the thin core thickness improves the ventilation efficiency of fan, reduces the wind resistance, and guarantees the normal running of machine under high temperature environment. ● The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ● The modular wheel reducer system features high strength, long service life, and easy maintenances. ● The compact body remarkably enhances the flexibility and features advantages for operations in narrow areas. ● High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ● The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ● The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ● The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ● The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment. ● The high capacity, multi-functional, and power angle blade with adjustable penetrating angle is suitable for fine operations, including leveling, backfilling, stacking, paving, and site clearing, featuring high rigidity and durability and high productivity. ● The optional imported hydraulic winch can be used for rescue and lumbering operations. It features outstanding rope traction force at any speed and stepless drum speed change. The high strength traction frame features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions. Performance Parameters Length × width × height (mm) (excluding ripper) 4252×2680×2775(Including traction frame) 4252×3150×2775(Including traction frame) Operating weight(t) (excluding ripper) 8.02 8.44 Engine model QSB3.3 Net power/rated speed (kW/rpm) 59/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 1.93 2.04 Applicable Working Conditions Modeling of golf courses and earthworks.Visa fler

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
