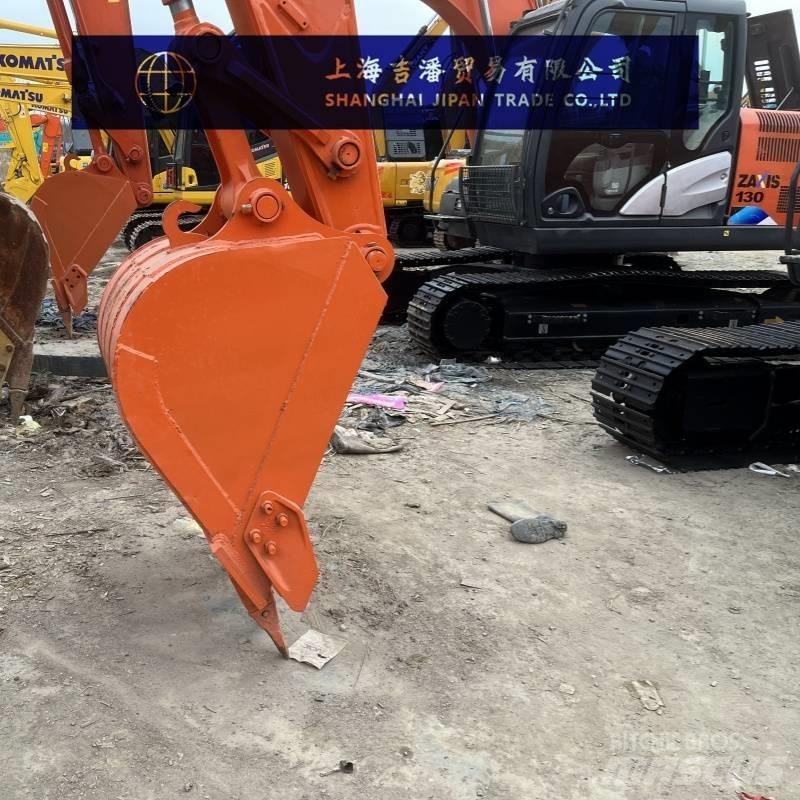

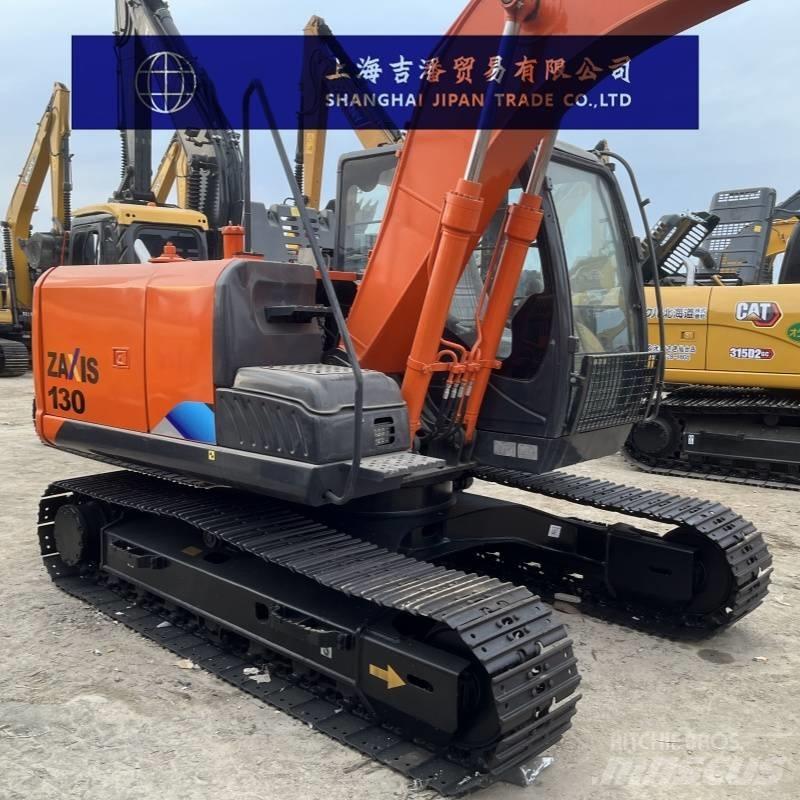

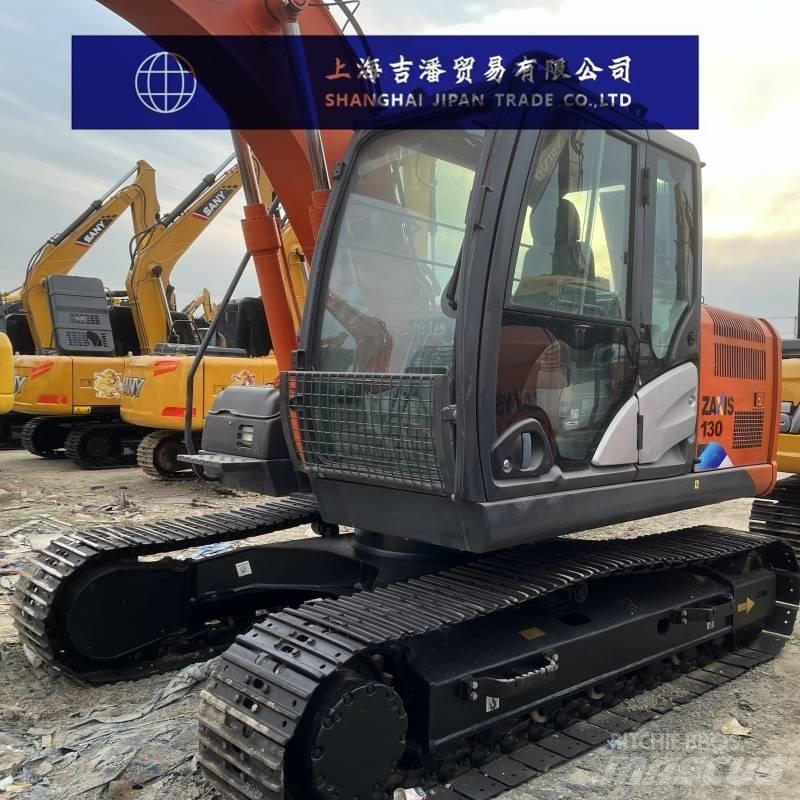

Hitachi ZX 130
Pris exklusive moms
Skriv ut
INFO
Produktgrupp
Bandgrävare
Märke / modell
Hitachi ZX 130
Tillverkningsår
2023
Drifttimmar
600 h
Land
China
Allmänt betyg
1
2
3
4
5
Mascus ID
D24F2D1A
PRIS
Jämför i annan valuta
DETALJER
Lagerid
1
Driftform
Diesel
Serienummer
1
Antal tidigare ägare
1
Senast besiktigad
2025-07-03
Underredets skick
Good Condition
Motor
Original
Totalvikt
12 500 kg
Motoreffekt
69 kW (93,8 hk)
Motortillverkare
Original
Registreringsnummer
1
Miljömotor
Steg V
Skopvolym
0,52 m3
Bandbredd
500 mm
Hydraulflöde
334 l/min
Topphastighet
5,50 km/h
Transportmått (LxBxH)
7700 x 2490 x 2790 mm
Originalfärg
Original
Sticklängd
2 490 mm
Skick och Garanti
1 Year
Tillverkningsland
Japan
Leveransvillkor
FCA, FOB, CIF, EXW
Certifikat
EPA, CE
Tillbehör
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Entreprenad tillbehör
Slangbrottsventil sticka
Kvist vajer
Luftkonditionering
Ytterligare hydraulik
Motor-förfilter
Gallerskopa
Huvudströmbrytare
Roterande varningsljus
Dieselvärmare
Joystick Kontroll
Standardskopa
Kabelskopa
Profilskopa
Annan information
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)13
The working weight of the entire machine (kg) is 12,500
Bucket capacity (m³) : 0.52
The length of the boom (mm) is 2520
Performance
Rotational speed (rpm) : 13.3
Walking speed (km/h) : 3.3-5.5
Climbing ability (%) : 70
Ground specific pressure (Kpa)39
Bucket digging force (kN)104
The digging force of the bucket arm (kN) is 69
Maximum traction force (kN)117
Power system
Engine model: Isuzu GJ-4JJ1XKSA-03
Rated power (kw/rpm)69/2000
Maximum torque (N.m)354/1600
Displacement (L)2.999
Number of cylinders (4)
Cylinder diameter × stroke (mm) : 95×105
The cooling method is water cooling
Working form: 4-stroke, water-cooled, electronically controlled direct injection type
Hydraulic system
The main pump types are two variable axial piston pumps
The rotary hydraulic motor type is one swash plate type plunger motor
The walking hydraulic motor type consists of two variable swash plate type piston motors
Pilot pump type: 1 gear pump
The maximum flow rate of the main pump (l/min) is 2×117
The pilot pump flow rate (L/min) is 33.6
Pilot oil circuit (MPa)4.0
Working hydraulic circuit (Mpa)34.3
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)32.3
Boom cylinders - number × cylinder diameter × stroke (mm)2*105*70
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1*115*80
Bucket cylinder - Number × cylinder diameter × stroke (mm)1*100*70
Oil capacity
Fuel tank (L)280
Hydraulic oil tank (L)70
Hydraulic system (L)170
Engine oil change volume (L)17
Coolant (L)24
Main body size
The total length of transportation (mm) is 7,700
The total transportation width (mm) is 2490
The total transportation height (mm) is 2790
The total height of the cab (mm) is 2790
Track grounding length (mm) : 2880
Track plate width (mm) : 500
The total width of the tracks (mm) is 2490
Track gauge (mm)1990
The ground clearance of the counterweight (mm) is 840
Minimum ground clearance (mm)410
The minimum turning radius (mm) of the front working device is 2400
The rear end turning radius (mm) is 2190
Number of idler wheels (single side) (units)1
Number of track plates (single side) (pieces)44
Number of supporting wheels (single side) (units)7
Scope of work
Maximum excavation radius (mm) : 8300
The maximum excavation radius of the shutdown face (mm) is 8170
Maximum excavation depth (mm) : 5540
Maximum excavation height (mm) : 8,600
Maximum unloading height (mm) : 6190
The maximum vertical excavation depth (mm) is 4750
